Multi filter bag housings –HBMA-QC model

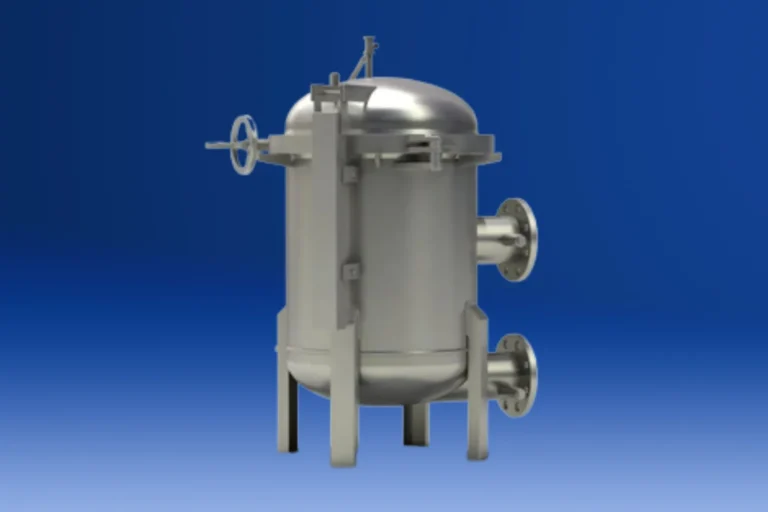

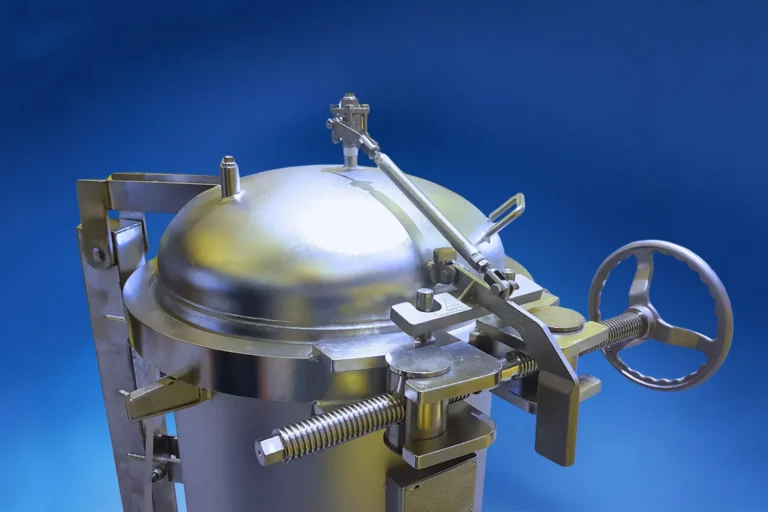

Allfil’s multi filter housing HBMA-QC is a model made of stainless steel and has an innovative self-balancing V-clamp locking mechanism with a proprietary screw-drive for single-handed operating. A quick closure design and its user-friendly operation makes the HBMA-QC a perfect choice for applications with high flow rates requiring large dirt holding capacity and frequent bag change-outs. Using a cover lock after opening, guarantee the safety of work under any conditions. Moreover, the construction of quick closure, a rugged corrosion free materials and short downtimes ensures years of smooth and cost effective service. The HBMA-QC model is available for number of filter bags from 3 up to 12 filter bags with a variety of connections and gasket materials.

Operating of the multi bag housing HBMA-QC relays on installing a set of bags into the filter housing, through which liquids flows, after the filter bags become dirty (the pressure or flow exceeds the permissible level), the filter housing should be opened and the bags replaced with a new one or, in the case of the baskets, cleaned and reinstalled.

Ask now
Certificates and compliance with standards

All our filter bag housings are pressure equipment and designed and manufactured according to the European directive PED 2014/68/UE. As a manufacturer of filter housings, we are certified by PN-EN ISO 3834 which proves that we fulfill the quality requirements regarding the welding process such as qualified welding supervision, using qualified welding technologies and employing certified welding staff. We take care about high quality and safety of our filter housing which are manufactured according to found and restrictive standards such.

Multi filter bag housing model HBMA-QC fits for the filter bags in sizes 1 & 2. They are made of stainless-steel type 304, 316, 316L, 316Ti. As a manufacturer we can design and produce other configurations.

  • Innovative self-balancing V-clamp locking mechanism for fast and easy operation.
  • User-friendly and one-handed operating for applications requiring frequent change-outs.
  • Minimal downtimes reduce operating cost.
  • Fully interlocked design for safety under any conditions.
  • Rugged, corrosion free V-clamp ensure cost-effective bag filtration.
  • Adjustable legs.
  • Inlet/ outlet connection according to customer’s request
  • Ceramic ball blasting or electropolished surface finish.
  • Gasket in Buna-n, EPDM, Silicone, Teflon, Viton.
  • Low pressure drop.
  • Easy to clean.
  • Installed in series or parallel on a single framework to allow for higher flow rates and/or throughput.
  • Heating-/ cooling jacket.
  • Valves, pump.
  • Liquid displacers.
  • Bag positioner.
  • Pressure gauge (0-10bar) G3/8".
  • Magnetic insert.
  • Differential pressure indicators.
  • Perforated or meshed basket.
  • Thread (3", 4”) thread BSP inside.
  • Nipple (3", 4”) thread BSP outside.
  • Flangein DIN and ANSI 3” -10".
  • Tri clamp connection.
  • Camlock connection.
  • Pipe for welding.
  • Hygienic connections (milk pipe), np. DIN 11851, DIN 11853.
  • Flat flange or loose flange.
