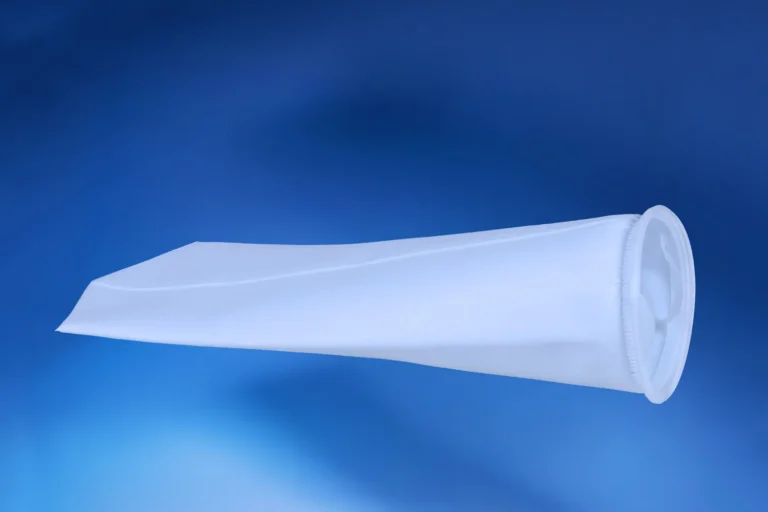

Welded bag filters
In our offer we have wide range of filter bags fully welded. Welded constructions ensure 100% tightness of filter bag and maintain high efficiency. Welded seams and collar protect against bypass through the seam. Welded filter bags are made of different filtration media, wide micron ratings and wide variety of possible construction which are perfectly suited for hundreds of applications in many industries.
All our welded filter bags are compliant to EC Directive 10/2011 and manufactured according to ISO 9001:2015 and ISO 14000:2015.
Available felts
- Polypropylene
- Polyester
- Nylon
- Nomex
- PTFE in range 0.5-200 micron

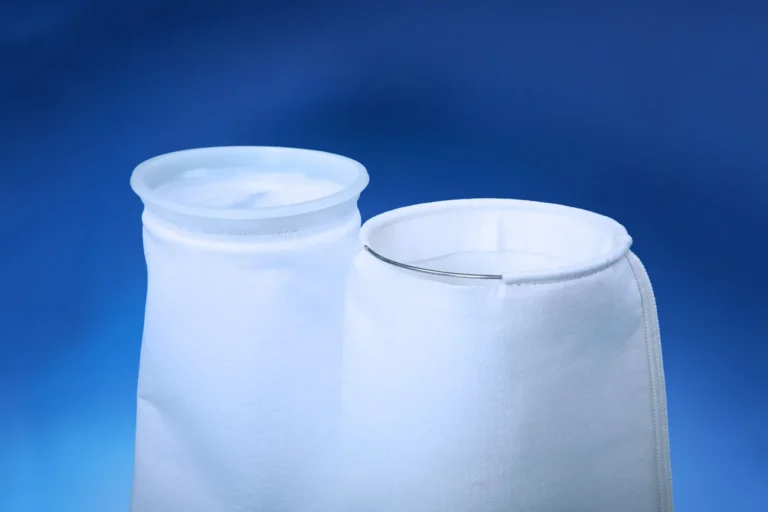

Available collars
- Collars
- Diameter 7" and 4" (177mm and 103 mm) standard size.
- Polypropylene, polyester, santoprene.
Special welded filter bags
- Available are different size filter bags in any diameter and any length.

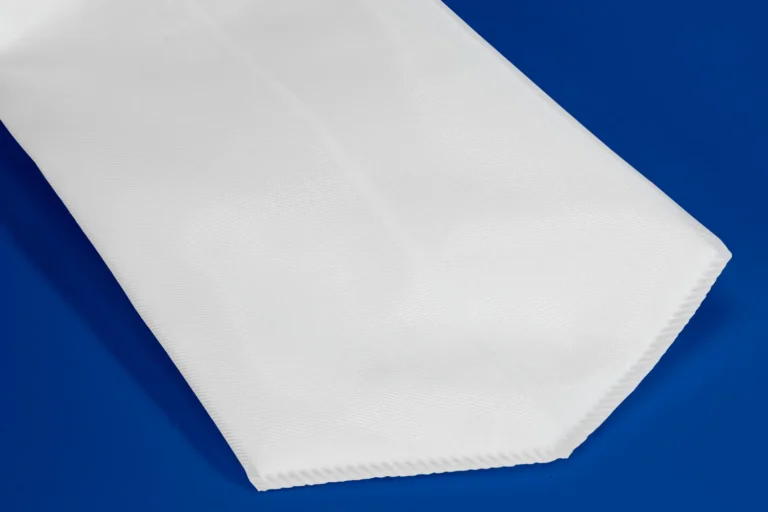

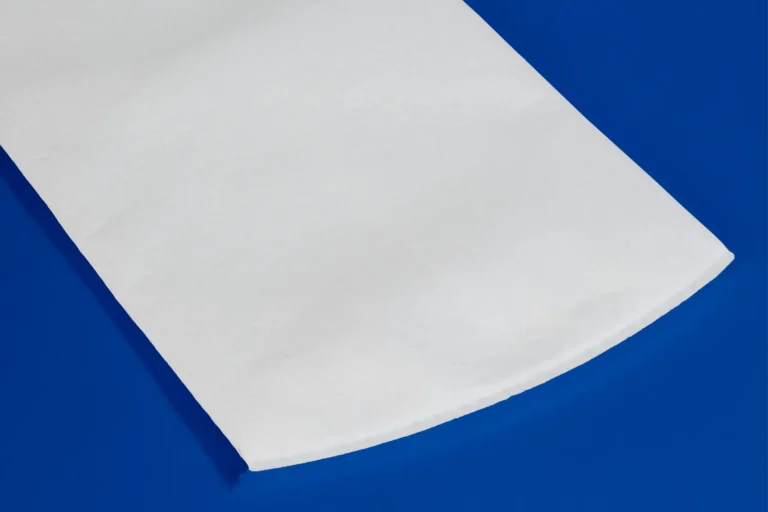

- Bottom of filter bag possible in V-shape, U-shape, round-shape, flat-shape.
- Cylindrical filter bags in any size and dimension.
- Mixed construction e.g. collar welded, side sewn and other configurations.
Features and advantages
- The filter bags are welded with ultrasonic sealing which provide 100% tight seam.
- Fully welded seams, no bypass.
- High strength filter bags.
- Welded seams are particularly useful in applications where maintaining a strict barrier is crucial.
- Top flange possible in plastic collar (polypropylene, polyester, santoprene) which eliminates solids bypass.
- Extractables free, no silicones, no glues.
