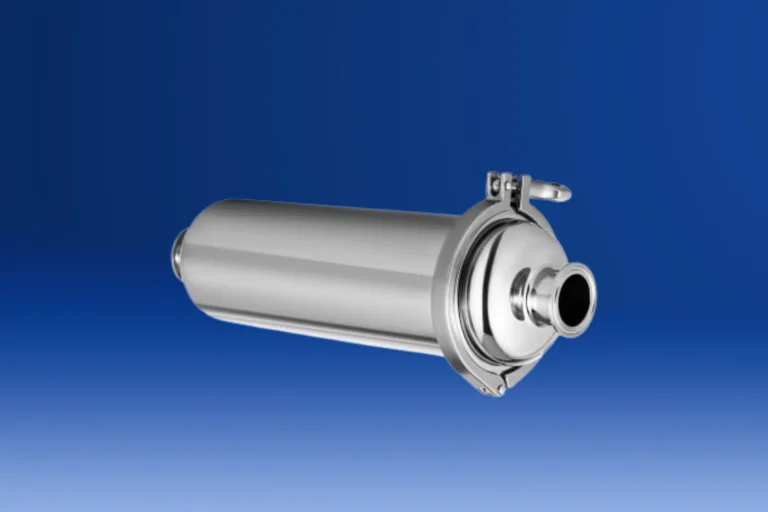

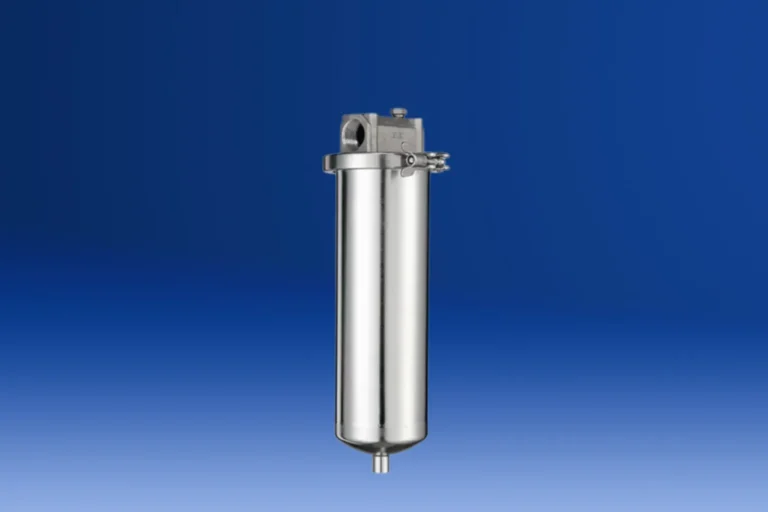

Single-Cartridge Filter Housing for String Cartridges
Single-cartridge steel filter housings are advanced pressure devices designed for handling individual filter cartridges. They are ideal for small filtration systems, providing high throughput, precise filtration efficiency, and extended system lifespan.
Technical data
| Material | Gasket materials | Max flow rate | Dimensions | Max operating temperature | Max operating pressure |
|---|---|---|---|---|---|
| Stainless steel304, 316, 316L, 316 Ti | Buna-N EPDM Silikon Viton |
8m3/godz - 60m3/godz |
Compatibile wiht filter cartridges 10" / 20" / 30" / 40" |
100°C / 160°C | 10 bar |
Advantages
- Low pressure drop.
- For standard filter sizes: 10”, 20”, 30”, 40”.
- Ceramic ball blasting or electropolished surface finish.
- Corrosion and high-temperature resistance.
- Durability and reliability in demanding conditions.
- Easy maintenance and filter cartridge replacement.
- Versatile industrial and commercial applications.
Optional accesories
- Heating/cooling jacket.
- Various inlet/outlet connections.
- Valves, pump.
- Pressure gauge (10 bar) G 3/8”.
- Differential pressure indicators.
Connections and accessories available
- Thread BSP Thread – (1”, 2”, 3”).
- Nipple BSP Thread – (1”, 2”, 3”).
- Flange ½ – 4”
- Tri-Clamp.
- Camlock.
- Welded Pipe.
- Hygienic DIN 11851 Fittings.
Files to Download
Single cartridge filter housing HCI.pdf
