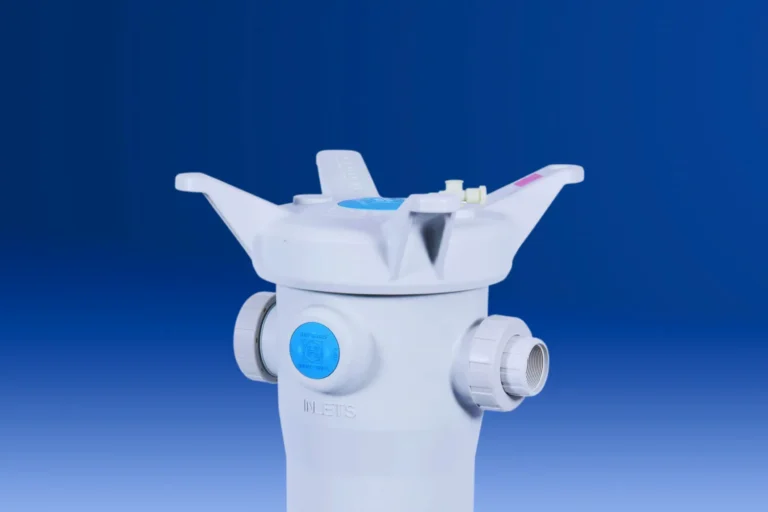

Plastic filter bag housings
Allfil’s standard plastic filter bag housings HBP-2 and HBP-1 series are available in 6 bar and 10 bar. Plastic filter housing is suitable for removing contaminants especially from brackish water or seawater as well as aggressive liquids such as acid. Plastic housings are often used in application, where stainless steel housing cannot be applied due to corrosiveness of medium.
Plastic filter housing is made from polypropylene or polyethylene materials, which are highly resistant to various chemical agents. The position of inlet and outlet configuration might be changed according to customers’ requirements.
Material
Polipropylen (twardszy i bardziej odporny na wysoką temperaturę).
Polietylen (HD-PE) (bardziej elastyczny i odporny na pęknięcia przy uderzeniach, lepszy do chemii, agresywnych cieczy).
Dimensions

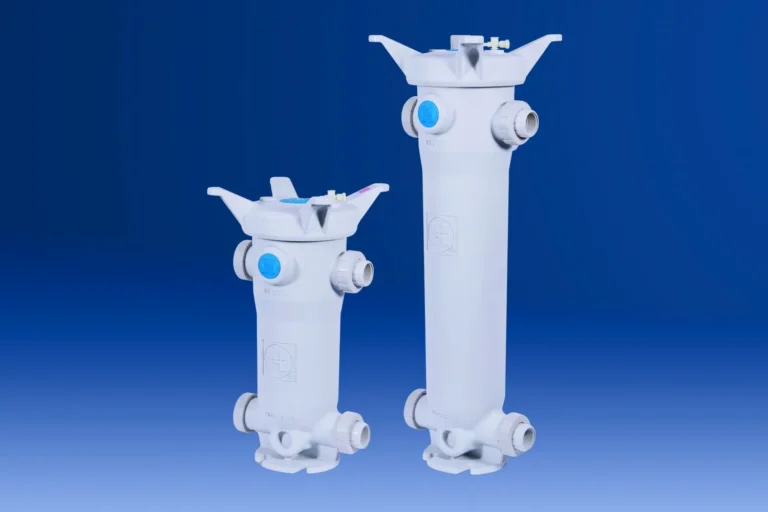

Obudowy plastikowe są dostępne w dwóch rozmiarach:
2 – pasujący do filtra workowego w rozmiarze 2 (długość 815mm)
1 – pasujący do filtra workowego w rozmiarze 1 (długość 410mm)
Connections and accessories available
- Thread (1", 2") thread BSP inside.
- Nipple (1", 2") thread BSP outside.
- Flanges 1 -4".
- Valves.
- Pressure gauges.
- Automatic air release.
All our filter housings as a pressure tank are designed and manufactured according to European directive PED 2014/68/UE.
Advantages
- Inlet/outlet according to customers’ requirements.
- Pressure up to 10 bar.
- High chemical resistance.
- Can be used in environments about high concentration of salt and in aggressive liquids.
- Can be applied in de-saltination systems.
- Low maintenance cost.
- Easy and quick change-outs of the filter bags.
- Technical support.
Files to Download
Plastic filter bag housing HBP.pdf
