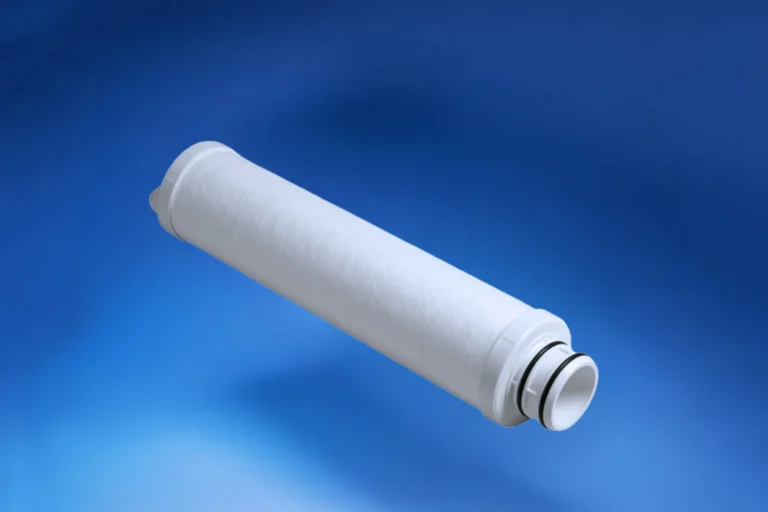

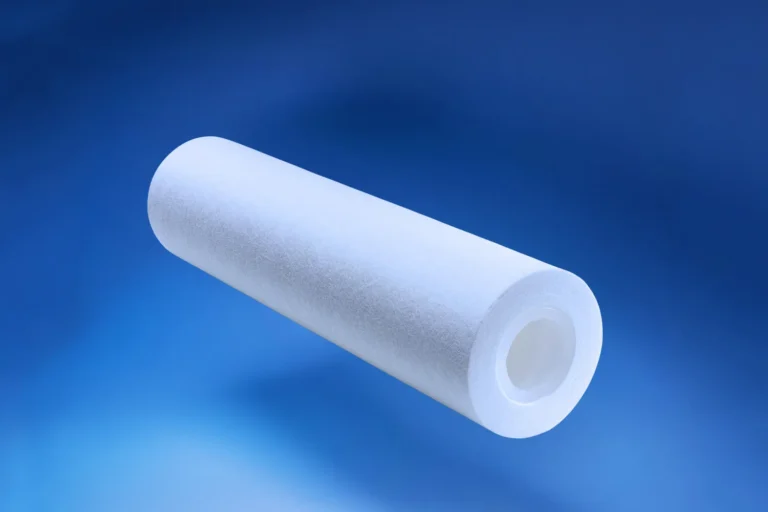

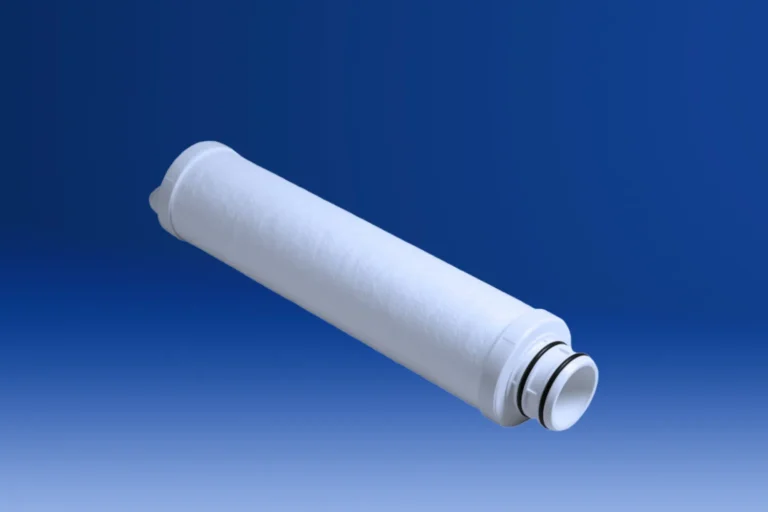

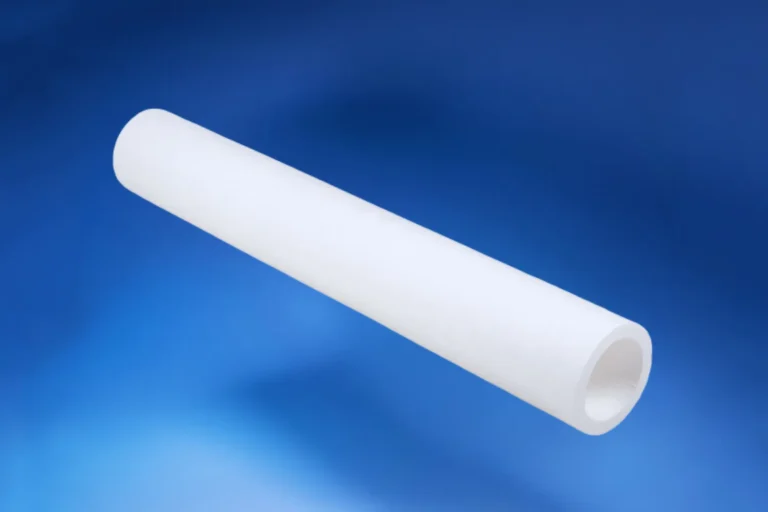

Melt-Blown Candle Filter Elements

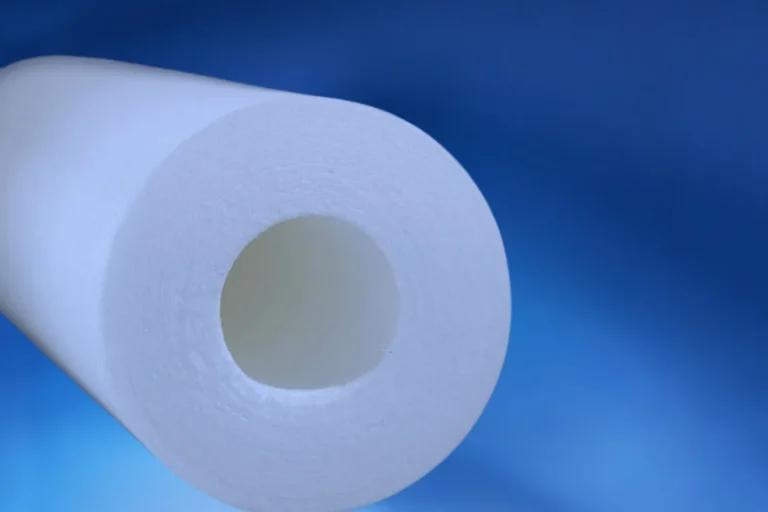

Our Melt-Blown MBN cartridge filters are a reliable solution for liquid filtration across various industrial applications. Manufactured using melt-blown technology, they provide excellent filtration efficiency while maintaining high performance and durability. Thanks to their multi-layer polypropylene fiber structure, melt-blown depth filters offer gradual filtration—larger particles are captured on the outer layers, while smaller ones are retained inside. This design enhances both filtration efficiency and filter longevity.
Advantages
- Advanced Melt-Blown technology – the multi-layer structure, made from 100% polypropylene, increases filtration efficiency.
- Molded inner core – ensures excellent strength and resistance to mechanical damage.
- High dirt holding capacity – the porous structure extends filter life and reduces replacement frequency.
- Chemical resistance – suitable for various media, including water, oils, and chemicals.
- Wide filtration range – available in a broad range of micron ratings from 1 up to 75.
- Fiber-free filtration – melt-blown media prevents fiber release into the filtrate as pressure differentials increase.
- Optional thermally bonded end caps – available for enhanced structural integrity.
- Binder-free composition – free from binders, adhesives, and surfactants.
Dimensions and filter area
| Technical data | Operating parameters | ||||||
|---|---|---|---|---|---|---|---|
| Length | Outer diameter | Outer diameter with end caps | Inner diameter | Material | Max. Differential pressure | Recommended change-out pressure | |
| 9,75” 248 mm |
2,5” 63,5 mm |
2,63” 67 mm |
1” 25,4 mm |
Material: polipropylen End caps/inner core: polipropylen |
150 psid @ 68°F (10,3 bar @ 20°C) 90 psid @ 150°F (6,2 bar @ 66°C) 35 psid @ 176°F (2,4 bar @ 80°C) |
35 psi 2,4 bar |
|
| 10” 254 mm | 2,5” 63,5 mm | 2,63” 67 mm | 1” 25,4 mm | 35 psi 2,4 bar |
|||
| 20” 508 mm | 2,5” 63,5 mm | 2,63” 67 mm | 1” 25,4 mm | 35 psi 2,4 bar |
|||
| 30” 762 mm | 2,5” 63,5 mm | 2,63” 67 mm | 1” 25,4 mm | 35 psi 2,4 bar |
|||
| 40” 1016 mm | 2,5” 63,5 mm | 2,63” 67 mm | 1” 25,4 mm | 35 psi 2,4 bar |
|||
Files to Download
Melt-blown filter cartridges.pdf
