MAX bag filters

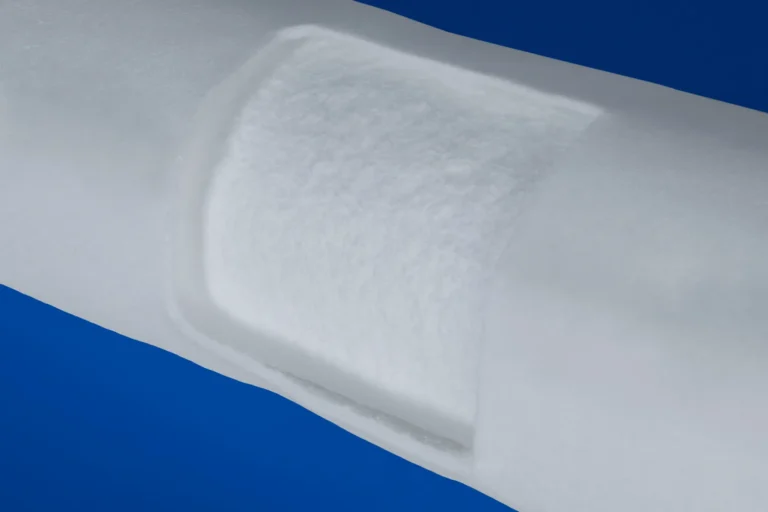

Allfil’s innovative MAX bag filters are designed to increase hi-efficiency and lower the cost filtration process. Its seamless micro-fiber graded density cartridge insert removes trace oils that frequently occur in process fluids and provides up to four times the dirt-holding capacity than standard polypropylene bags. The special hybrid construction of a conventional felt bag with a seamless microfiber cartridge insert as a pre-filtration allows to achieve extended lifetime of the Max bag filters.
Media
Polypropylene filter bag with 100% polypropylene rigid insert.
Available with plastic collar in polypropylene.
Micron rating
Available from 1µm to 100µm
Operating parameters
Max temperature up to 90°C
Dimensions and filter area
| Size | Diameter × Length (mm) | Diameter × Length (inches) | Filter area (m2) |
|---|---|---|---|
| 2 | 177 × 820 | 7×32" | 0,50 |
| 1 | 177 × 420 | 7×16" | 0,25 |
Non-standard dimensions on request.
All our polypropylene filter bags are compliant to EC Directive 10/2011 and manufactured according to ISO 9001:2015 and ISO 14000:2015.
Features and advantages
- Hybrid construction: seamless microfiber cartridge and standard felt bag.
- Entirely seamless construction of the thermal bonded microfiber inserts with high tensile strength.
- Hi-efficiency, low-cost filtration is ideal for continuous flow application.
- Glazed outer surface to prevent fiber migration.
- Thermally bonded microfiber material, no binders or adhesives.
- Adsorptive properties for small particles, filtration of wide range of particles.
- FDA compliant to meet food grade government standards.
Application
- Continuous flow application.
- E-coat and phosphate bath.
- Batach application: oils, edible oils, syrup.
- Final and polishing filter requirments.
- Water Filtration and treatment.
Files to Download
Max bag filters.pdf
Trust our experience!
Do you need help choosing the right filtration system? Contact us! We are happy to advise and provide the best solutions tailored to your needs.
