Lenticular Filter Housings (Disc Filter Housings)

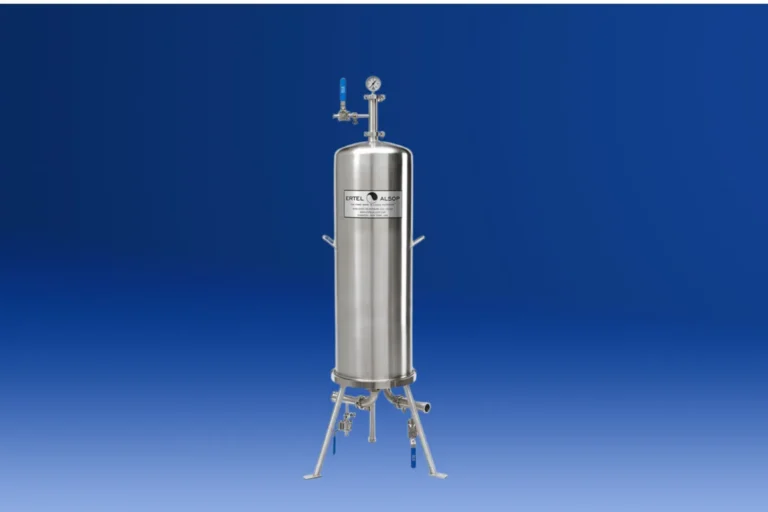

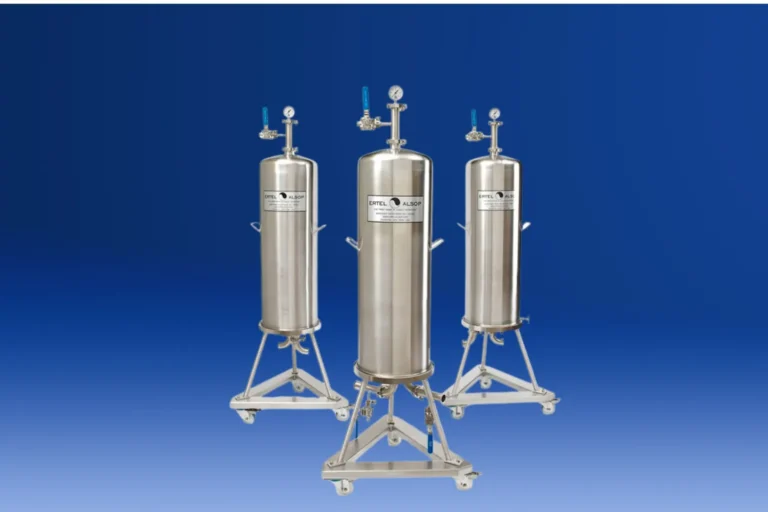

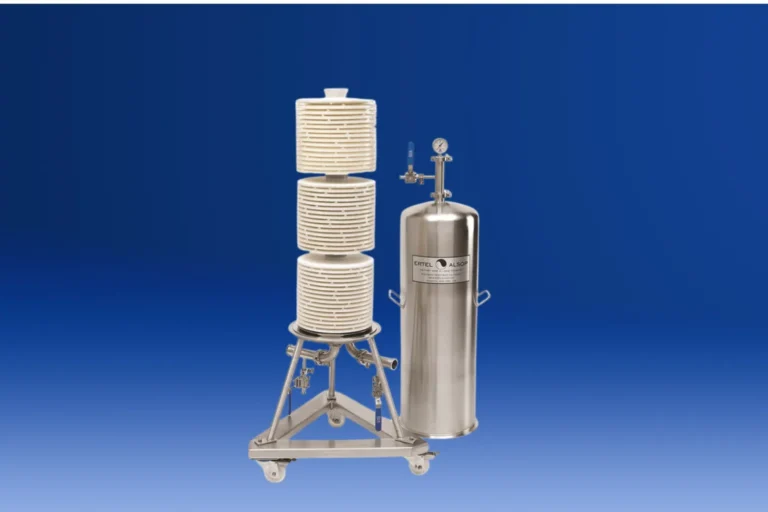

Sanitary Lenticular Cartridge housings manufactured by ErtelAlsop are a modern solution designed for liquid filtration in industries that require high hygiene and cleanliness standards, such as the food, pharmaceutical, cosmetic, and chemical industries. The 12-inch 12PYDO housing with a double O-ring seal ensures the integrity of pharmaceutical and biotechnology processes by providing a highly polished housing with sanitary fittings, a vent connection, and no internal threads. The 12PYDO model is standardly made of 316L stainless steel, and the design allows for easy cleaning of the housing after disassembling the components and quick replacement of filter elements. The housing is sealed, preventing liquid leaks and allowing for internal pressure control.
Advantages
- T-316L stainless steel, sandblasted or electropolished.
- 1.5” 3-clamp sanitary inlet/outlet with 90-deg elbows.
- Stainless steel pressure gauge 0-60 psi.
- V-band clamp closure.
- Top vent valve.
- Non-adjustable legs with foot pads.
- Pumps, tubing, and portable carts.
- No central post.
- Fewer material components reduce compatibility issues.
Application
- Filtration of silicones, coatings, oils, and lubricants.
- Removal of solid and liquid contaminants from turbine lubricants and transformer insulating oil.
- Removal of solid particles and volatiles from syrups, flavors, wine, beer, and spirits.
- Clarification in plasma processing, API ingredients, culture media, and cell culture harvests.
Technical data
| Serie | Number of Pak Cartridges /Number of Cells per Pak | Material | Cartridge diameter | Gasket material | Height | Width - Base | Width - Dome | Volume - Empty | Volume w/Pak Cartridge | Filter area | Average Flow Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12PYDO 1 | 1/16 | Stainless Steel 316 | 12" (30,48 cm) |
EPDM Buna-N Neoprene Viton Silicon Teflon Encapsulated |
38.6" (981 mm) | 19.1" (485 mm) | 12.75" (324 mm) | 1693 in³ (27.74 l) | 494 in³ (8.10 l) | 18.5 ft² (1.72 m²) | 1 gpm/ft² (3.79 l/m²) |
| 12PYDO 2 | 2/16 | Stainless Steel 316 | 12" (30,48 cm) |
EPDM Buna-N Neoprene Viton Silicon Teflon Encapsulated |
49.5" (1257 mm) | 19.1" (485 mm) | 12.75" (324 mm) | 3043 in³ (49.87 l) | 645 in³ (10.57 l) | 37 ft² (3.44 m²) | 1 gpm/ft² (3.79 l/m²) |
| 12PYDO 3 | 3/16 | Stainless Steel 316 | 12" (30,48 cm) |
EPDM Buna-N Neoprene Viton Silicon Teflon Encapsulated |
60.7" (1542 mm) | 19.1" (485 mm) | 12.75" (324 mm) | 4393 in³ (71.99 l) | 796 in³ (13.04 l) | 55.5 ft² (5.16 m²) | 1 gpm/ft² (3.79 l/m²) |
| 12PYDO 4 | 4/16 | Stainless Steel 316 | 12" (30,48 cm) |
EPDM Buna-N Neoprene Viton Silicon Teflon Encapsulated |
71.6" (1819 mm) | 19.1" (485 mm) | 12.75" (324 mm) | 5743 in³ (94.11 l) | 947 in³ (15.52 l) | 64 ft² (5.95 m²) | 1 gpm/ft² (3.79 l/m²) |
Files to Download
Lenticular filter housing 12 PYDO.pdf
