HBS Side inlet bag filter housings

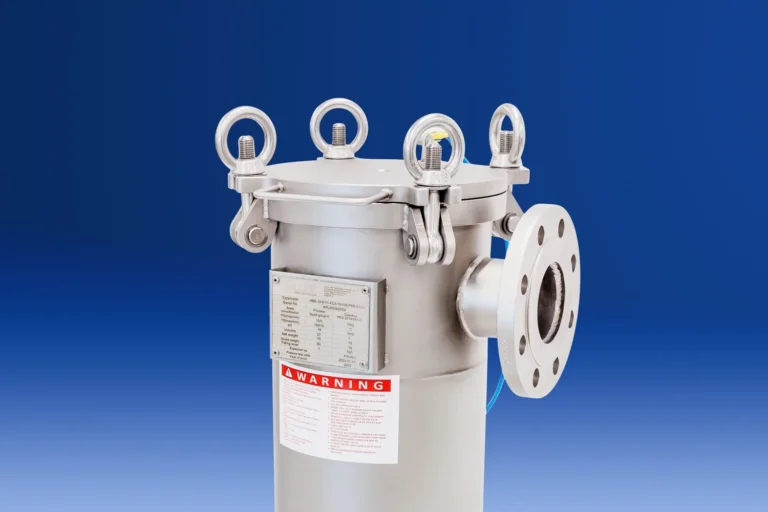

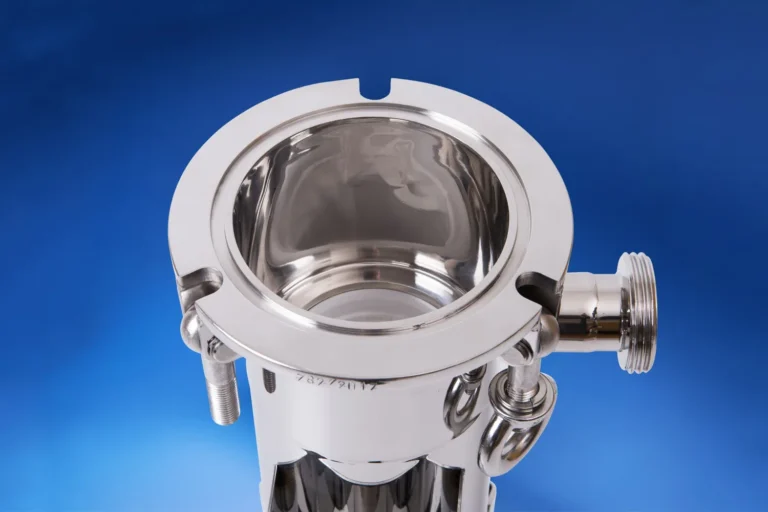

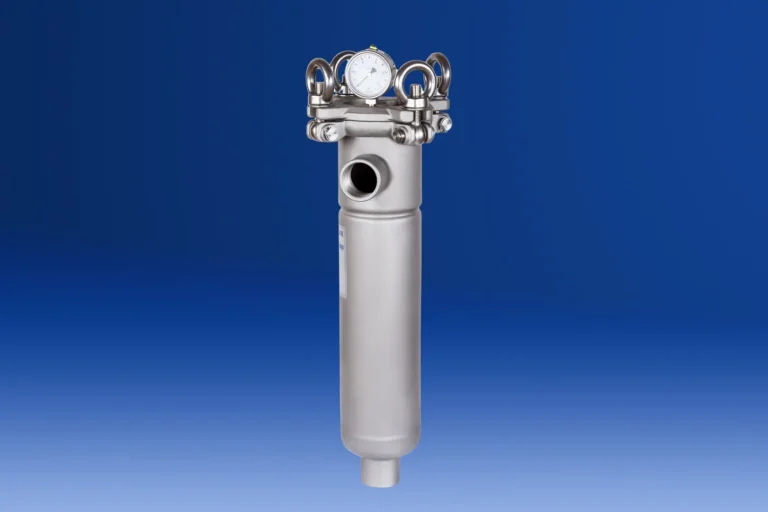

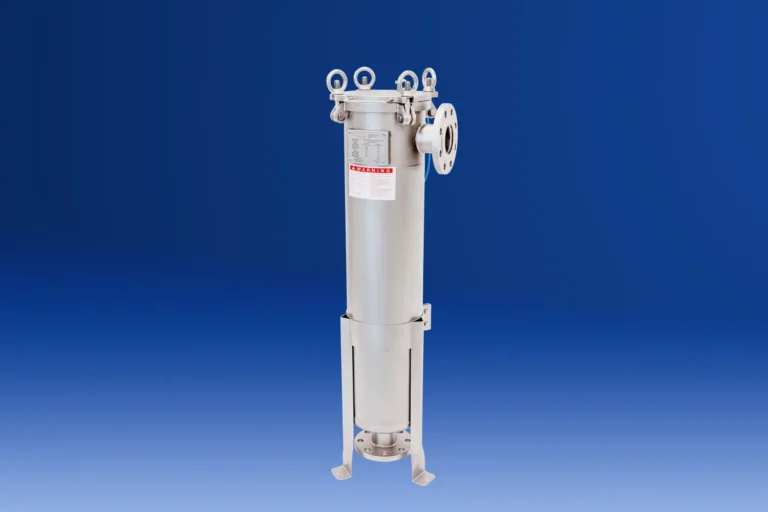

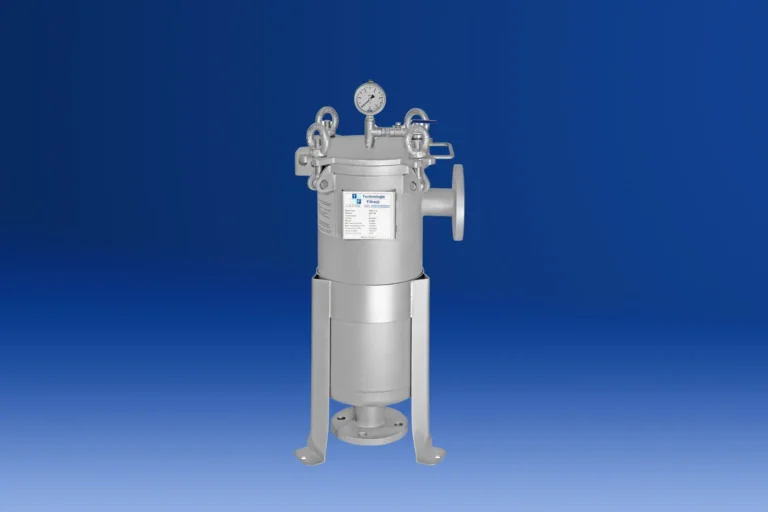

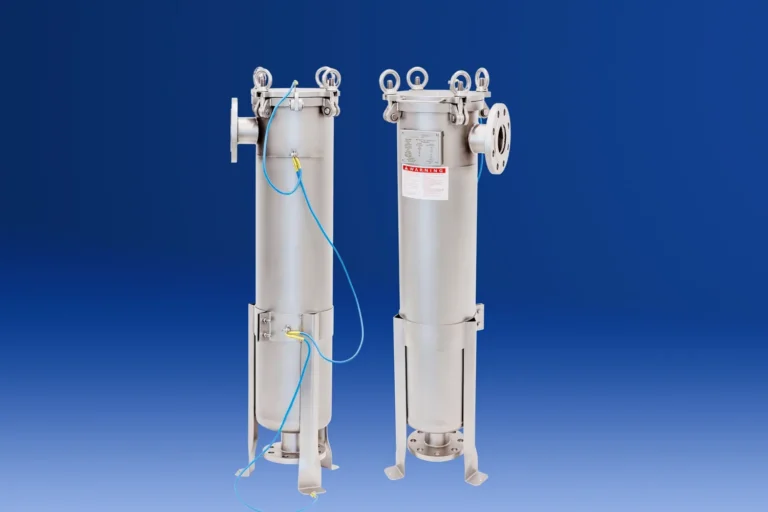

Allfil’s filter housing HBS model is a standard industrial filter bag housing commonly used in the wide range of liquid applications due to its compact dimensions and high flow rate and/or throughput. The HBS model is a high-pressure design which has a side inlet principle.

Allfil’s filter housing HBS model is a standard industrial filter bag housing commonly used in the wide range of liquid applications due to its compact dimensions and high flow rate and/or throughput. The HBS model is a high-pressure design which has a side inlet principle.

Ask now
Certificates and compliance with standards

All our filter bag housings are pressure equipment and designed and manufactured according to the European directive PED 2014/68/UE. As a manufacturer of filter housings, we are certified by PN-EN ISO 3834 which proves that we fulfill the quality requirements regarding the welding process such as qualified welding supervision, using qualified welding technologies and employing certified welding staff. We take care about high quality and safety of our filter housing which are manufactured according to found and restrictive standards.

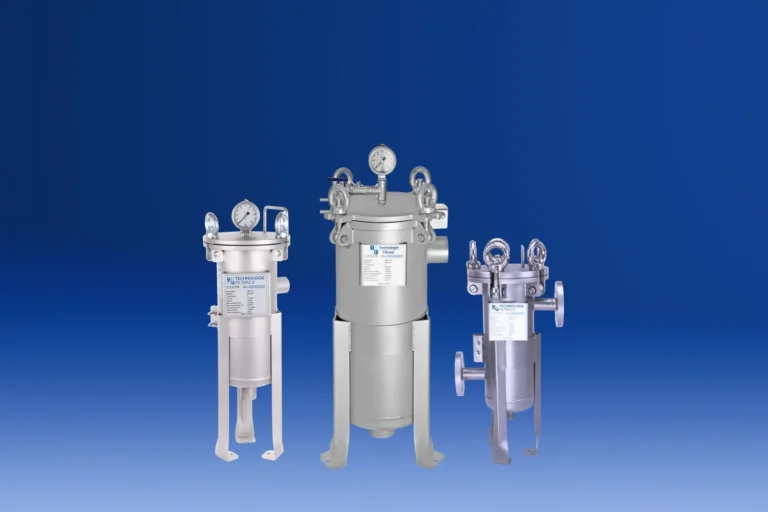

Filter bag housing model HBS is available in sizes 1, 2, 3, 4. They can be made of stainless-steel type 304, 316, 316L, 316Ti or exotic materials like hastelloy. As a manufacturer we are able to design and produce all kind of configurations.

  • Cover closed by hinge bolt and eye nuts or making easier operating of the filter housing.
  • Adjustable legs.
  • Inlet/ outlet connection according to customer’s request
  • Ceramic ball blasting or electropolished surface finish.
  • Gaskets in Buna-N, EPDM, Silicone, Teflon, Viton.
  • Low pressure drop.
  • Easy to clean.
  • Installed in series or parallel on a single framework to allow for higher flow rates and/or throughput.
  • Heating-/ cooling jacket.
  • Valves, pump.
  • Liquid displacers.
  • Bag positioner.

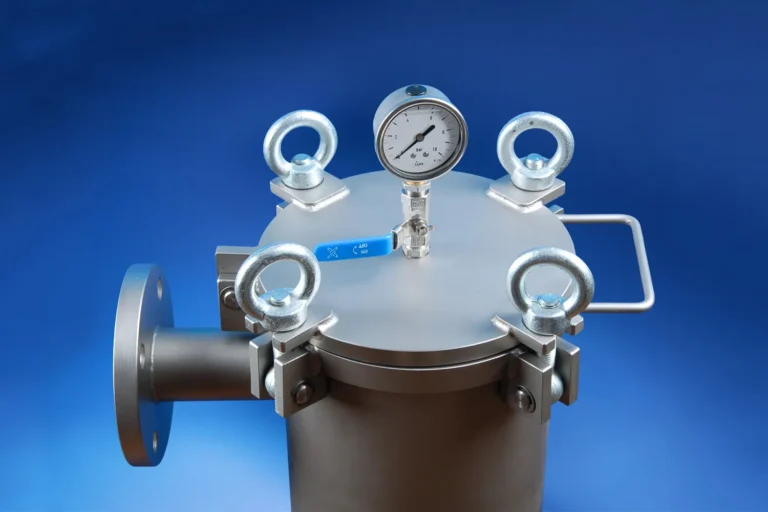

  • Pressure gauge (0-10bar) G3/8".
  • Magnetic insert.
  • Differential pressure indicators.
  • Perforated or meshed basket.
  • Thread (1", 2", 3") thread BSP inside.
  • Nipple (1", 2", 3") thread BSP outside.
  • Flangein DIN or ANSI ½ -10".
  • Tri clamp connection.
  • Camlock connection.
  • Pipe for welding.
  • Hygienic connections (milk pipe), np. DIN 11851, DIN 11853.
  • Flat flange or loose flange.
