Economical Bag Filter Housings

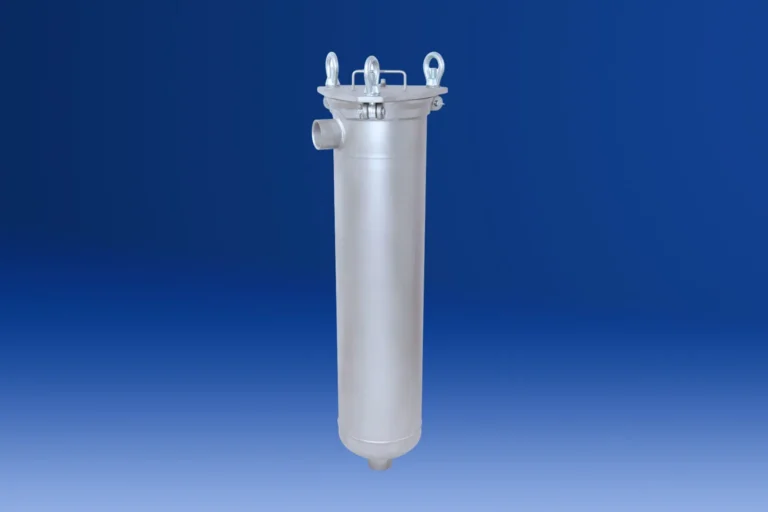

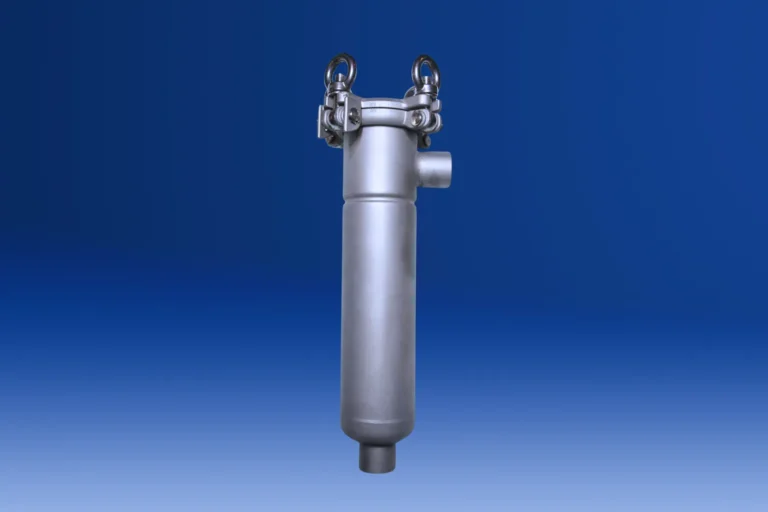

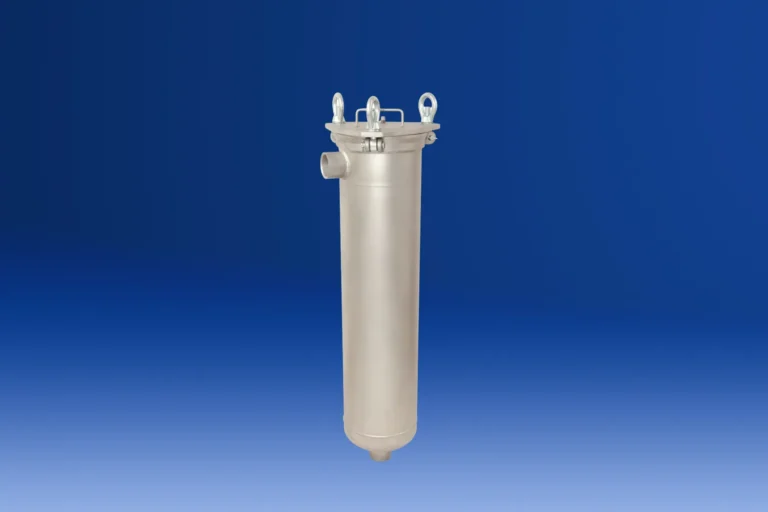

Allfil’s economical filter housing model in comparison to the industrial HBS/HBT housing model is a low-priced solution for solid/liquid filtration. Economical filter housings due to their compact dimensions and higher flow rates and /or throughput are widely used in various industrial applications in which minimalization of cost is particularly important. Economical bag filter housing is a single filter bag high pressure design with a side threaded or flanged connection.

Operating of the economical filter bag housing relays on installing a bag into the filter housing, through which liquids flows. After the filter bag becomes dirty (the pressure or flow exceed the permissible level), the filter housing should be opened and the bag replaced with a new one or, in the case of the basket cleaned and reinstalled.

Ask now
Certificates and compliance with standards

All our filter bag housings are pressure equipment and designed and manufactured according to the European directive PED 2014/68/UE. As a manufacturer of filter housings, we are certified by PN-EN ISO 3834 which proves that we fulfill the quality requirements regarding the welding process such as qualified welding supervision, using qualified welding technologies and employing certified welding staff. We take care about high quality and safety of our filter housing which are manufactured according to found and restrictive standards such.

Economical filter bag housing is available for filter bags in sizes 1, 2, 3, 4. They can be made in stainless steel only.

  • Cover closed by hinge bolt and eye nuts or making easier operating of the filter housing.
  • Adjustable legs.
  • Threaded or flanged pipe connection from the side.
  • Ceramic ball blasting or electropolished surface finish.
  • Gaskets in Buna-N, EPDM, Silicone, Teflon, Viton.
  • Low pressure drop.
  • Easy to clean.
  • Cost-effective solution.
  • Heating-/ cooling jacket.
  • Valves, pump.
  • Liquid displacers.
  • Bag positioner.
  • Pressure gauge (0-10bar) G3/8".
  • Magnetic insert.
  • Differential pressure indicators.
  • Perforated or meshed basket.
  • Thread (1", 2", 3") thread BSP inside.
  • Nipple (1", 2", 3") thread BSP outside.
  • Flangein DIN or ANSI ½ -10".
  • Tri clamp connection.
  • Camlock connection.
  • Pipe for welding.
  • Hygienic connections (milk pipe), np. DIN 11851, DIN 11853.
  • Flat flange or loose flange.
