Dewatering containers

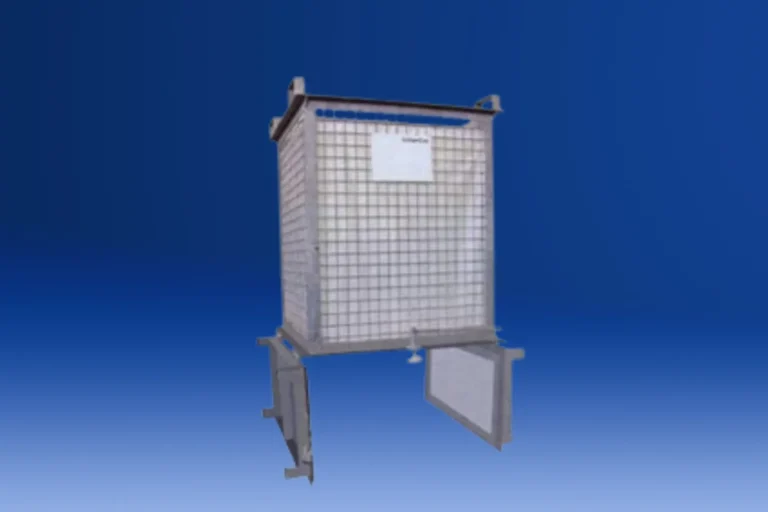

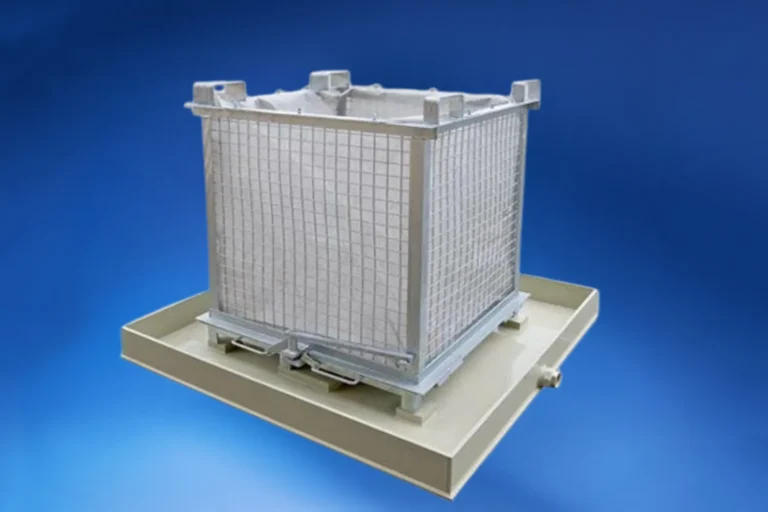

Primarily designed for systems utilizing self-cleaning filters. The air stream from the cleaning process (known as back-flash) is directed straight into a filter bag placed inside a specially designed basket. We offer the complete set - basket, effluent-collector, and filter bags. Each of these components can also be ordered separately.
The basket's specially engineered shape ensures maximum filtration efficiency – the design allows full utilization of the entire filter surface, including the sides, back wall, and bottom. This improves contaminant separation and extends the service life of the filter bag.
Advantages
- Wide filtration accuracy range, depending on the properties of the filter bag material – suitable for various liquids and contamination levels.
- Equipped with four robust lifting handles for easy handling and transport using a forklift.
- Lockable bottom for safe handling and controlled discharge of collected solids.
- Filtered liquid is collected in the effluent-collector, from where it can be redirected for reuse – helping to reduce waste and lower operational costs.
- Easy to clean and maintain thanks to smooth internal surfaces· Easy to clean and maintain thanks to smooth internal surfaces.
- Durable and robust construction, resistant to harsh industrial environments.
Application
- Waste management.
- Removal of solid particles from process baths.
- Filtration of cooling and lubricating fluids.
- Filtration of industrial wastewater.
- Pre-separation of suspensions and sludge before further treatment.
- Fluid recycling.
- Rapid filtration of liquids containing oils, fuels, or other contaminants.
Technical data
| Material | Dimensions | Capacity | Filter area | Weight (empty basket) | Max operating temperature |
|---|---|---|---|---|---|
| Basket: Steel, Stainless steel Effluent-collector: polypropylene, steel, stainless steel Filter bag: polypropylene, polyester, polyamide |
Basket’s base: 1050x1070mm
Basket’s height: 1230mm Effluent-collector’s base: 1300x1300mm Effluent-collector’s height (with legs): 600mm |
1m3 | 40 000cm2 | 150kg | from 0 to 80°C |
Files to Download
Sludge dewatering device.pdf
