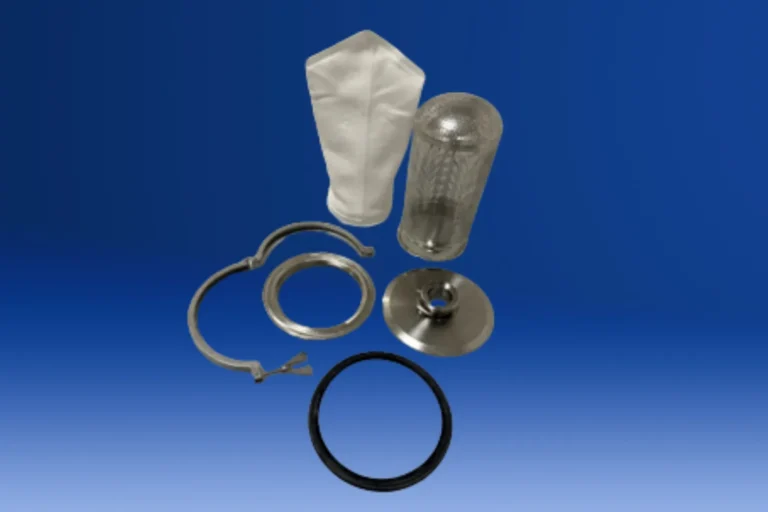

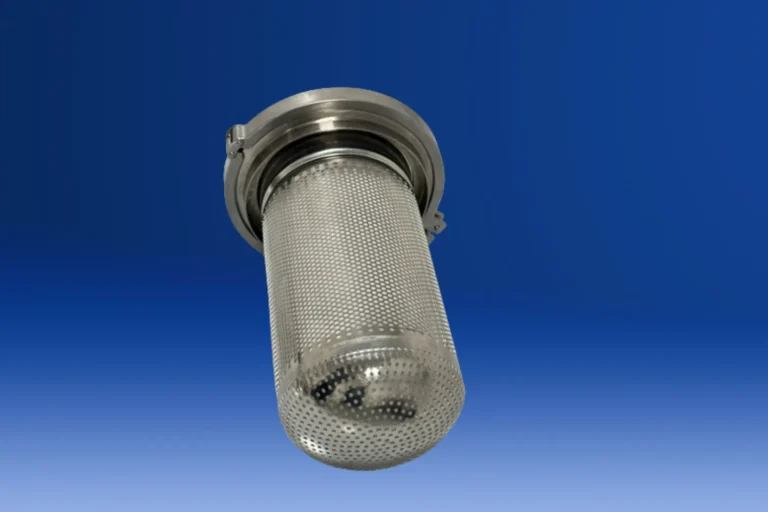

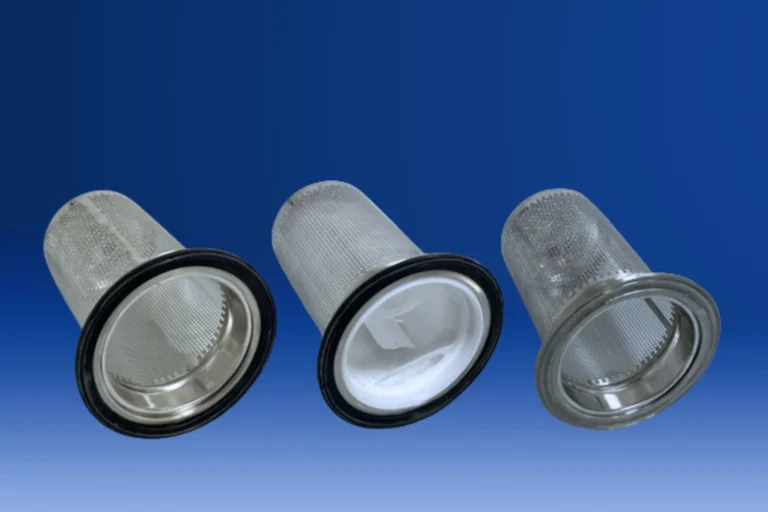

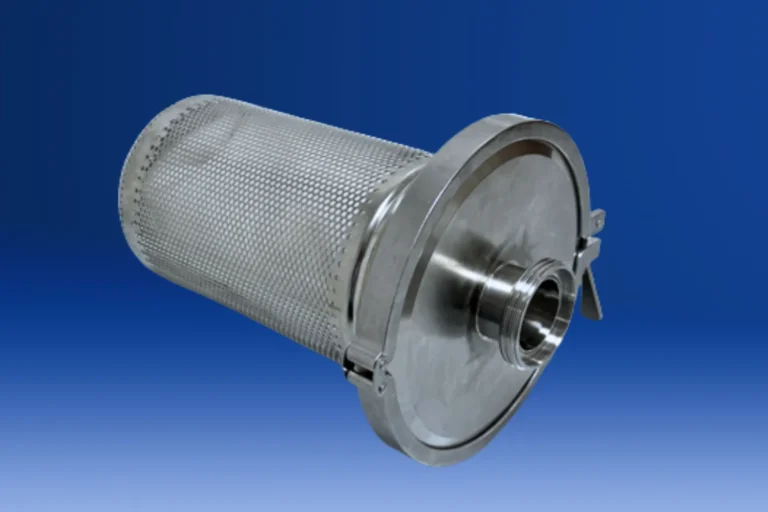

Bulk Loading Filter
The bulk loader filter is a cost-effective filtration unit designed specifically for end-of-line filtration, bulk liquid transfer, and in-plant packaging operations. Engineered for high performance and durability, this system ensures that trace particulate contaminants are effectively removed at the final stage of your processing stream, safeguarding product quality and protecting downstream equipment. Suitable for use with a perforated support basket during pressure filtration, or without the basket when operating under low-pressure conditions—e.g. when there is only hydrostatic pressure of the filtered liquid.
Advantages
- Exceptional final filtration for bulk liquid loading and high-volume filling lines.
- Durable 304 or 316 stainless steel for demanding industrial environments.
- High pressure restrainer basket, ensuring reliable filtration under intense flow.
- Quick release clamp for easy access and maintenance.
- Compatible with standard size 1 and 2 filter bags.
- Fast and effortless bag replacement.
- Leak-proof O-ring gaskets seal in materials suited to your chemical and process compatibility.
Application
- High-volume operations.
- Bulk transport.
- Drum filling.
- Tote loading.
Technical data
Material | Filter Bag Collar - Model H |
Bag filter’s material | Gasket materials | Basket sizes | Fittings |
---|---|---|---|---|---|
Stainless Steel AISI 304 Stainless Steel AISI 316 |
Polipropylene POH Poliester PEH Santoprene PZH |
Polypropylene, Polyester, Polyamide |
EPDM PTFE SILIKON VITON |
Size 1: 0,25m2 Size 2: 0,50m2 |
BSP Milk Pipe DIN 11853-1 Cam-lock |
